DC Brake VersiBrake Series(25A)

Features:
  • DC braking with one-way rectification
  • controlled by microcontroller
  • suitable for all asynchronous motors
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • special voltages up to 575V (UL: up to 480V) with option �B�
  • for snap-mounting onto 35mm top-hat-rail
  • degree of protection IP 20
Functions:
  • control via motor contactor
  • standstill detection
  • braking current limited to rated device current
  • remanence time optimization
  • braking current infinitely adjustable
  • potential-free output for motor contactor interlocking during braking
  • potential-free output for fault signalling relay

Typical Applications:
sawing machines
centrifuges
wood working machines
textile machines
conveying systems


Accessories:

  • star-delta starting control (D)
  • motor temperature monitoring (P)
  • standstill signalling relay (S)
  • wide-voltage-range 200-575V (B), control voltage of 24VAC or 230VAC is necessary (please note in order)

Models:

Type designation AC-VB ...

230-25

400-25

Mains voltage according to DIN EN 50160 (IEC 38)

AC-VB 230 … 220/240V ± 10% 50/60Hz Option “B”

AC-VB 400 … 380/415V ± 10% 50/60Hz 200 … 575V ± 10% 50/60Hz

Power draw of the electronics

6VA

Recommended for rated motor currents up to

12.5A

Rated device current

25A

c.d.f. at max. braking current

8%

I2t-Value Power semiconductor (A2s)

1250

Braking voltage

0 … 130VDC at 220/240V

0 … 220VDC at 380/415V

max. Braking time

15s (other times upon request)

Contact rating of output relay

6A/250VAC; 6A/30VDC

Delay time for reduction of residual e.m.f.

Self-optimizing (100 … 2500ms)

max. Cross-sectional area for connection

2x 2.5mm2 per terminal

Ambient / Storage temperature

0ºC … 45ºC / -25ºC … 75ºC

Weight / kg

0.8

Order number 230V

21900.23025

Order number 400V

21900.40025

Order number 230V - UL

29800.23025

Order number 400V - UL

29800.40025

Please observe supplementary sheet with dimensioning rules

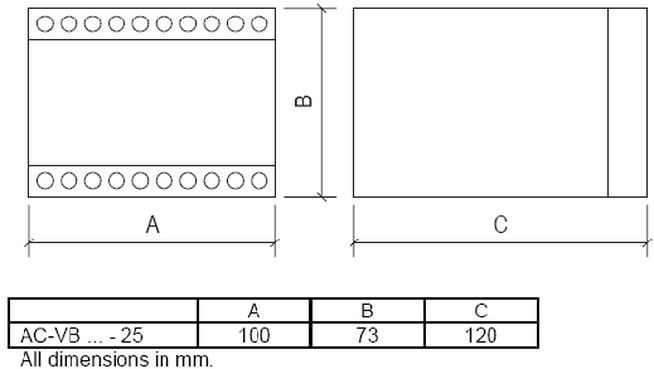

Dimensions:

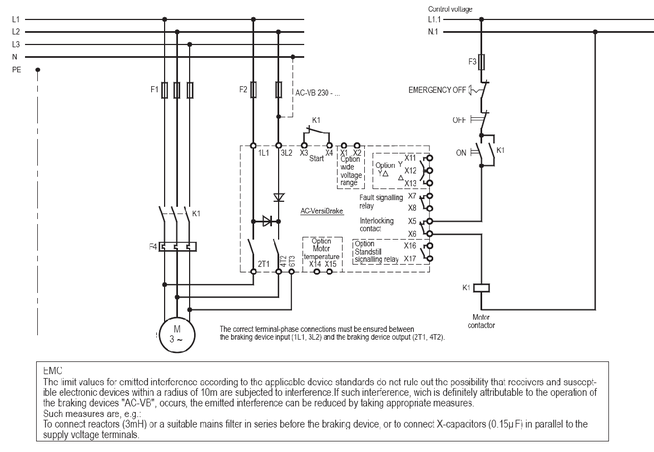

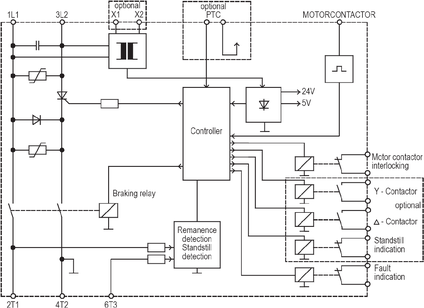

Connection Diagram:
